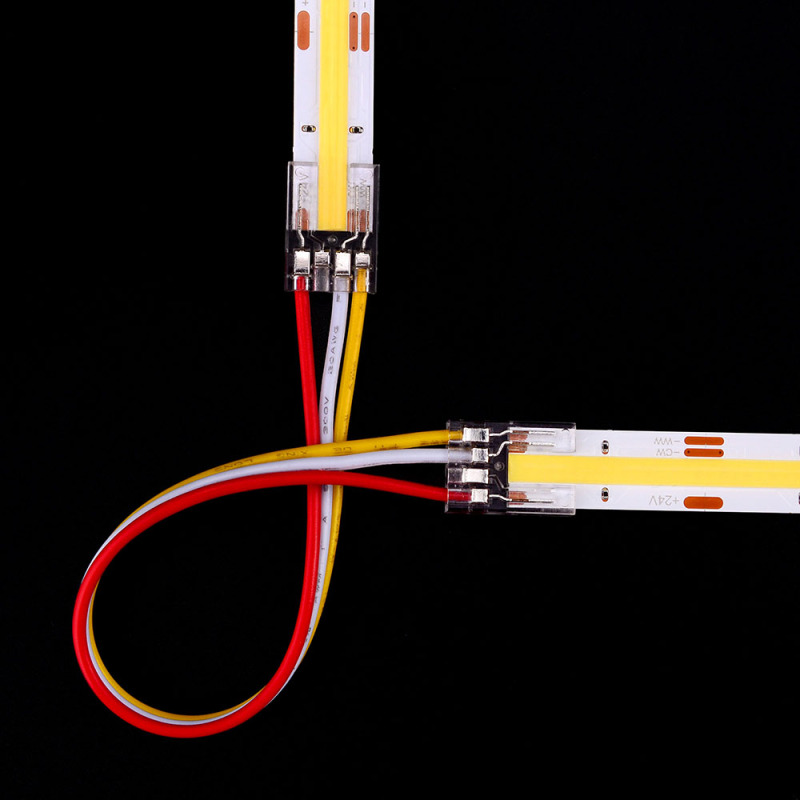

H-A2T-3P-10

Item No.: 00928
Transparent PC connector for CCT COB strip
3 Pin, 10mm, IP20, 2 heads
Strip to wire without soldering, 15CM naked 20AWG UL wire
0-36V, 5.5A
Description Review
Description
  • H Transparent Connector  for COB and High Density Strip
  • Solderless
  • Seamless connection, continuous light
  • 100% transparent, no shade, keeping original color temperature

Item No. Application Description
H-B3P-10 Strip-To-Strip Transparent PC connector for CCT COB strip
3 Pin, 10mm, IP20
Strip to strip without soldering
0-36V, 5.5A
H-A3P-10 Strip-To-Power Transparent PC connector for  CCT COB strip
3 Pin, 10mm, IP20, 1 head
Strip to wire without soldering, 15CM naked 20AWG UL wire
0-36V, 5.5A
H-A2T-3P-10 Strip-To-Strip Transparent PC connector for  CCT COB strip
 3 Pin, 10mm, IP20, 2 heads
Strip to wire without soldering, 15CM naked 20AWG UL wire
0-36V, 5.5A

Solder Free COB Strip Connectors -- Invisible




5mm

8/10mm


CCT 10/12mm

RGB 10/12mm

Not need soldering, press directly, transparent, no dark area.

Slim size, put into the aluminum channels.

Zero shadow, light as invisible.

Product Details

  • Tin-plated copper
  • Contact points
  • Groove for LED strip
  • Lock


Top View

Back


How to connect strip to strip

1.Insert strip into each gap.

2.Make sure equal conductor well placed on each PIN.

3.Clamp both conductors for piercing PCB one by one.

4. Connection completed.

Caution

1. The high temperature and humidity environment will cause the product to change color. It is recommended to be stored in environment with temperature and humidity management.

2. Please use the product within 6 months after leaving factory, the warranty period is 1 year.

3. The raw materials of the connector will absorb moisture. If the temperature changes sharply in the hygroscopic state, the color of the shell may shift. It is recommended to store in ventilated and dry environment and avoid sunlight.
